The speed and torque of the main reducer are transferred after its deceleration and torsional increase, and then transferred to the wheel, in order to make the wheel in the ground adhesion under the reaction, produce a greater driving force. Thus reducing the wheel side reducer in front of each part of the force.

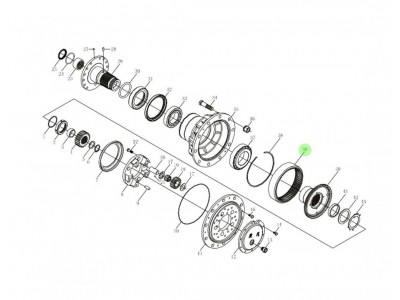

1 | 168000340016 | Adjust the gasket |
2 | DZ91129320007 | The shaft head nut |
3 | 188000420022 | baffle |
4 | 188000420003 | Round the sun |
5 | 188000440010 | Additional gaskets |
6 | 190003933300 | An elastic retainer for the shaft |
9 | 1160-2400062 | Cylindrical pin 190003901704 |
10 | 188000420012 | O-ring seal |
11 | 199100420003 | Drive flange Assembly |
PF19910042000301 | Round edge assembly | |
12 | DZ9112340214 | End cover |
13 | DZ9112346116 | Hexagonal plug with cylindrical head |
14 | 190003802511 | Hexagon head bolt Q150B1018 |
16 | 190003825513 | Ten grooved disc head screws Q2541020 |
17 | 199012340075 | Planetary wheel gasket |
18 | 199000420050 | Planetary wheel (Z=16) |
19 | 1-99-934-013 | Needle roller bearing |
20 | 188000420024 | The planets wheel |
21 | 190003330148 | Steel ball 8.0 |
22 | Q151C1265TF2 | Hex head bolts - fine teeth |
23 | 188000410069 | Needle roller bearing NK55/35 |
24 | 190003936071 | circlip Q43870 |
25 | 190003078556 | Shaft seal |
27 | 188000410102 | Locking pin |
28 | 188000410109 | tube |
29 | DZ9100410063 | Shaft head (left) |
DZ9100410064 | Shaft head (right) | |
30 | 140600060011 | O-ring seal |
31 | 188000420028 | Every ring |
32 | 2190-3103023 | Shaft seal |
33 | 190003326443 | Tapered roller bearing 32020 |
34 | 199000410103 | Wheel bolt |
35 | DZ9100420029 | Front wheel hub |
36 | 190003884160 | Wheel nut |
37 | 190003326445 | Tapered roller bearing32022 |
38 | 188000420014 | Retaining ring |

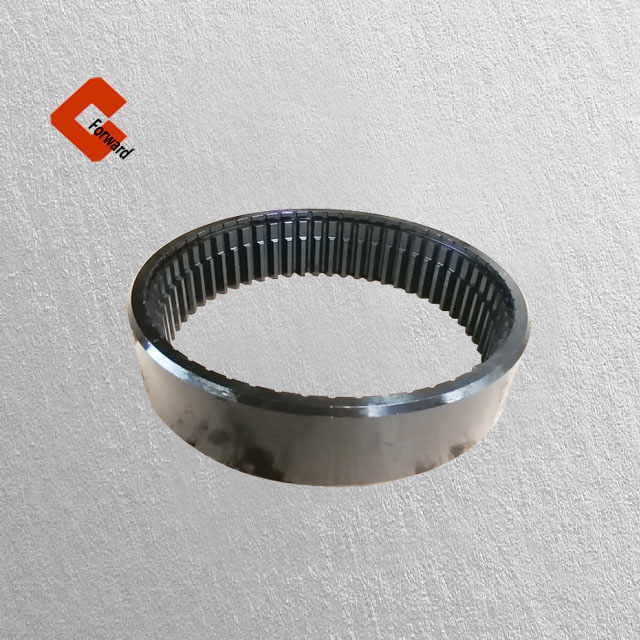

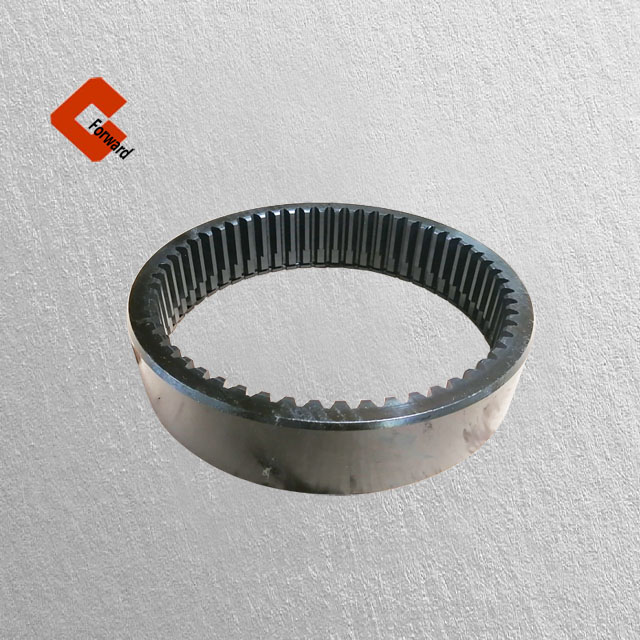

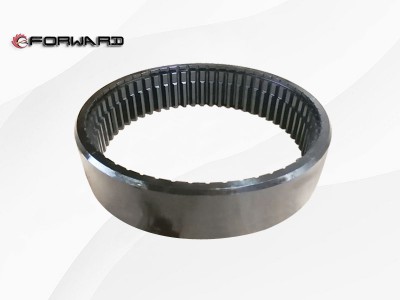

39 | 199000420049 | The ring gear |
40 | 199112340021 | Gear ring support assembly |
41 | 188000420030 | Bearing washer |
42 | 188000420034 | Thrust pad ring |
43 | 168000340015 | Thrust lock plate |
