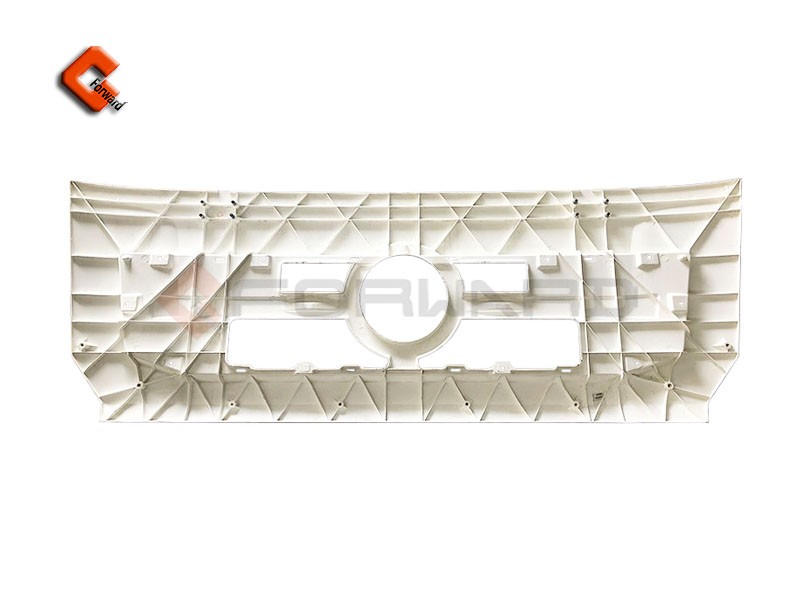

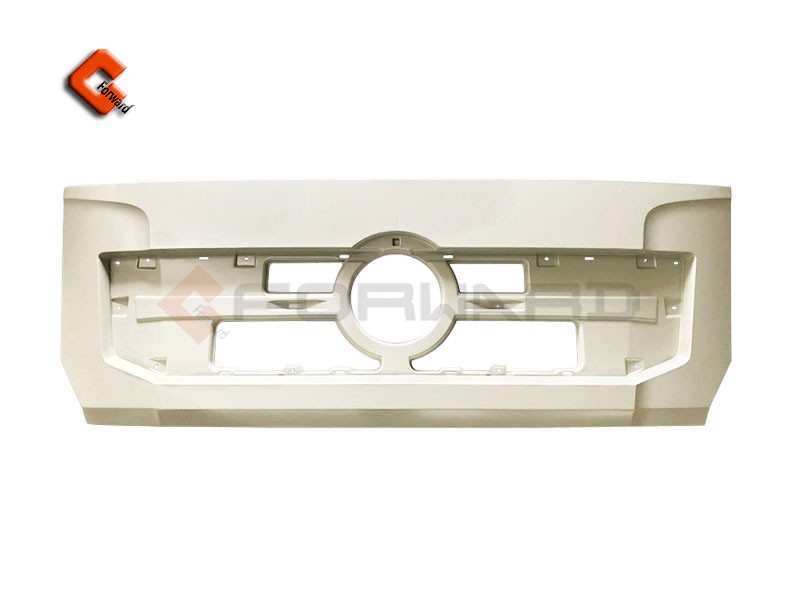

In order to solve the technical problems, and puts forward the technical scheme of the invention is: a radiator mask, including grille ontology, the first electroplating decorations, the second molding, spray molding, electroplating logo, it is grille ontology among the logo installation, it is grille sets, and described the first electroplating decorations on the back of ontology matching the first installation of tank, it is stated on the back of the grille ontology first installation groove bottom spray has described with details that matches the second installation groove, grille described around the sides and bottom of the ontology has described with first electroplating decorations that matches the third installation groove, described logo logo installation described with fixed edge.
Further, a first card slot of equal spacing is arranged on the first mounting slot, and a first card buckle matching the first card slot is arranged on the reverse side of the second spraying trim.
Further, a hole groove is arranged at both ends and in the middle of the first mounting groove, and an mounting hole is arranged in the hole groove, and a first bolt matching the mounting hole is arranged at the opposite position of the back of the second spraying trim.
Further, a second clamping groove is arranged on the bottom and side wall of the second mounting groove, and a second clamping buckle matching the second clamping groove is arranged at a relative position on the first spraying trim.
Further, the bottom of the left and right sides of the second mounting groove is provided with a second hole, and the second bolt matching the mounting hole is arranged in the opposite position of the back side of the first spraying trim.
Further, it is top of the grille on both sides of the ontology has two bolted tanks, it is bolted groove with two fixed hole, it is the first electroplating decorations on both sides at the top of the match the fixed orifice described the third bolt, described the third bolts from the front through the relatively fixed orifice, described the first electroplating decorations will be fixed on the grille ontology, the bolt from through a fixed orifice described grille ontology will be fixed on the car.
Further, it is the logo last week to a fixed seat buckle groove, it is the logo fixed seat has mounting holes hole has a middle seat, it is the logo on the back of the circumferential has fixed buckle buckle groove matching with stated, described in the middle of the logo on the back of the equipped with mounting holes match in a fixed column, described described clasp slot with fixed buckle, described the fixed hole between clamping fixed with fixed column described.
The invention has the following advantages and positive effects: the invention is provided with a number of parallel spraying trim bars to make the grid assembly more beautiful; Matching fixed devices are set at several relative positions of the spraying trim and the grid body, so that the spraying trim is firmly fixed on the grid body and the structure is more stable. Matching positioning device and fixing device are provided on the relative position of logo fixed base and logo, which makes it easier to match logo and grille body and more convenient to install. There is a large gap between the spraying strips parallel to each other, which increases the heat dissipation effect.
